    SAP2903
    DUAL COMPARATORS

    The SAP2903 consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage, and the outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

    Main feature

    • Wide Single−Supply Range: 2V~36V

    • Faster response time of 1 µsec

    • Common-mode input voltage range includes ground

    • Differential input voltage range equal to maximum rated

    • supply voltage: ±36V

    • Low output saturation voltage

    • ESD rating (HBM): 2KV


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SAP2903SA SOP-8-225-1.27 SAP2903 Halogen free Tube
    SAP2903SATR SOP-8-225-1.27 SAP2903 Halogen free Tape&Reel

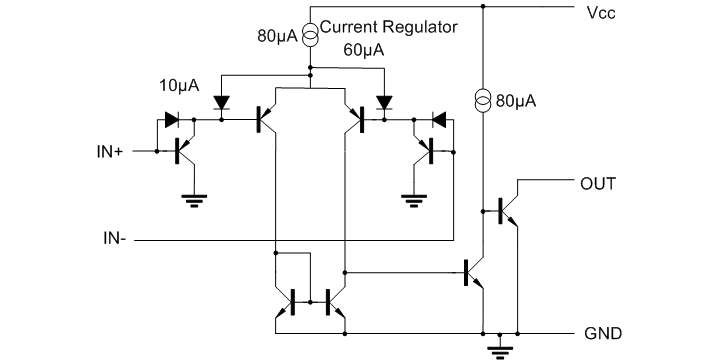

    Block Diagram
